What is the purpose of cable 1 0?
#1/0 THHN/THWN-2 Wire Please call for longer put ups. Applications: Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). Type THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications.
Which is better THWN or Thhn?
The main difference between these two standards is their maximum temperature in wet locations. THWN has a maximum temperature of 90°C in dry and wet locations, whereas THHN wire can only be used in temperatures as high as 75°C in wet locations. However, most of these wires, so you can use THHN and THWN interchangeably.
Where is Thhn wire used?
THHN (Thermoplastic High Heat-Resistance Nylon coated) is a cost-effective building wire that is typically used for carrying electrical currents between buildings and external power sources, signaling, control wiring, machine tools, and automation systems.
Is Thhn wire stranded or solid?
The most popular type of building wire is THHN. THHN stands for Thermoplastic High Heat-resistant Nylon coated. THHN is available in stranded or solid conductors depending on the size. It is either manufactured in copper or aluminum and covered in PVC (polyvinyl chloride) insulation with a nylon jacket.
How many amps can 1 0 gauge wire handle?
How many amps can a 1/0 gauge wire handle? At 75°C, it has a rated ampacity of 150 amps; essentially, the 1/0 W wire is a 150 amp wire size. At 60°C, it can handle up to 125 amps, and it can handle up to 170 amps at higher temperatures (90°C). 0 gauge wire can be used for a number of different electrical applications.
How big is 1 ought wire?
American Wire Gauge Conversion Chart (AWG)
| Gauge No. | Inches | Millimeters |
|---|---|---|
| 3/0 | 0.409642 | 10.40 |
| 2/0 | 0.364797 | 9.266 |
| 1/0 | 0.324861 | 8.251 |
| 1 | 0.289297 | 7.348 |
Is Romex a Thhn?
Romex wire is made out of two or three THHN wires combined with a grounding bare copper wire. Like the THHN wires, Romex wire can’t be used outside because of its minimal PVC jacket protection.
Is Thhn waterproof?
THHN wire is the most common type of single conductor electrical wire. It’s manufactured with a dual rating of THHN and THWN so that it’s all water-resistant. It can be used indoors and in conduit only.
How many breakers can be on a 150 amp panel?
Number of Breakers You Can Put in a 150a Panel In most cases, a 150-amp panel has 30 spaces that can carry as many as 60 circuits, although this varies between different brands. You can fill up all the slots, installing 30 circuit breakers.
Is Romex the same as Thhn?
What is Romex Wire? Romex wire is made out of two or three THHN wires combined with a grounding bare copper wire. Like the THHN wires, Romex wire can’t be used outside because of its minimal PVC jacket protection.
What does THHN wire stand for?
THHN stands for Thermoplastic High Heat-Resistant Nylon coated. It is the most popular wire for use in construction but can also be used to wire control circuits, machine tools and certain electrical appliances. THWN stands for Thermoplastic Heat and Water resistant Nylon coated.
Can You Bury THHN wire?
The ground wire in MC cable is also a THHN wire rather than a bare copper ground wire so the cable remains moisture and solvent resistant. Underground Electrical Wire. THHN cannot be buried directly in the ground so you’ll have to upgrade on a single conductor to USE-2 wire.
What is THWN wire mean?
THWN stands for ” Thermoplastic Heat and Water-resistant Nylon-coated.”. THWN is a designation for a specific insulation material, temperature rating, and condition of use (wet locations) for electrical wire and cable.

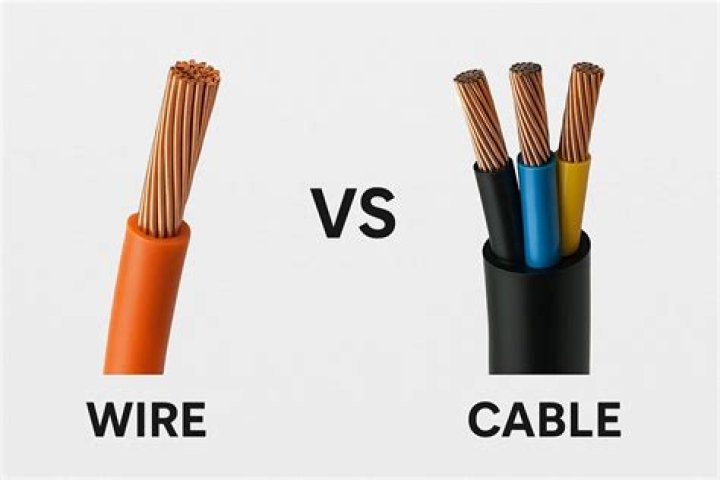

What is 1 0 cable?
1/0 Wire & Cable. Wire and cable are products that carry an electrical current from a power source to devices and equipment. Wire is characterized by a solid or stranded conductor protected by insulation and/or a jacket. Cable consists of one or more conductors wrapped in a sheath.
