What is the relationship between collector current and base current?

What is the relationship between the base-emitter and collector-emitter voltages of a bipolar transistor? Generally, the current that flows from the emitter to the collector or vice versa is the base current times the DC current gain (hFE).

Does base current control collector current?

One of the most important properties of the Bipolar Junction Transistor is that a small base current can control a much larger collector current.

Which is Beta’s current ratio?

The common-emitter current gain (β) is the ratio of the transistor’s collector current to the transistor’s base current, i.e. And the common base DC current gain (α) is a ratio of the transistor’s collector current to the transistor’s emitter current, i.e.

Why does collector current increases with base current?

Collector Current It increases for larger emitter currents because the larger number of electrons injected into the base exceeds the available holes for recombination so the fraction which recombine to produce base current delines even further.

Why is Collector current more than base current?

Answer: Explanation: Base is much narrower and thinner than collectors,hence the majority of charge carriers are received by collector. Hence,collector current is greater than base current.

Why does collector current depend on base current?

If the electron supply to the base (base current) is reduced then base becomes negative and attracts less number of hole due to which net flow of hole from Emitter to Collector decreases and the collector current decreases. Thus Collector current is controlled by the Base current. , student of electronics since 1999.

Which is Beta’s β current ratio IC IB IC IE IB ie ie IB?

A transistors current gain is given the Greek symbol of Beta, ( β ). As the emitter current for a common emitter configuration is defined as Ie = Ic + Ib, the ratio of Ic/Ie is called Alpha, given the Greek symbol of α.

How many PN junction has a transistor?

two PN junctions
The Transistor is a three terminal solid state device which is formed by connecting two diodes back to back. Hence it has got two PN junctions.

Is PNP sinking or sourcing?

PNP sensors are sometimes called “sourcing sensors” because they source positive power to the output. NPN sensors are sometime called “sinking sensors” because they sink ground to the output. The term “load” identifies the device the sensor powers.

How do you decide between PNP and NPN?

As they are normally referred, PNP and NPN sensors are both supplied with positive and negative power leads, then produce a signal to indicate an “on” state. PNP sensors produce a positive output to your industrial controls input, while NPN sensors produce a negative signal during an “on” state.

Why does collector current increase with temperature?

As the temperature of a transistor increases, the collector current will increase because: Intrinsic semiconductor currrent between the collector and base increases with temperature. Its flow through the biasing resistors drives the base more positive, increasing forward bias on the base-emitter diode.

What is the relationship between base current and collector current?

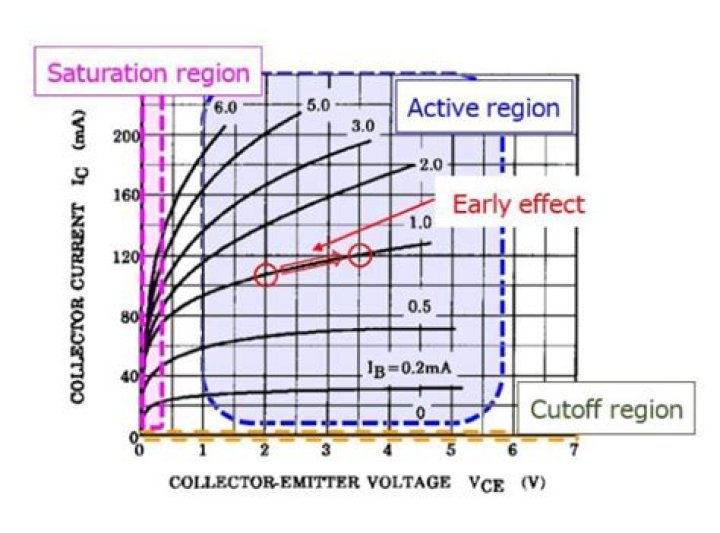

In forward active mode, increases in base current create increases in collector current according to the relationship I C = βI B. However, when the transistor enters saturation, the collector current essentially levels out: we can continue to raise V IN, but this will result in only very small increases in collector current.

Does collector current influence beta?

Yes, in theory, the small-signal variations in collector current influence beta, but we assume that the overall effect is not significant. The following plots are examples of the relationship between beta and collector current.

What is the collector current at the BC Junction?

The collector current is extremely small until V IN reaches approximately 0.6 V. After that, the transistor is in forward active mode, and collector current increases rapidly. Then, at V IN ≈ 1.05 V, the collector current reaches the point at which the voltage dropped across R C is large enough to move the BC junction into the forward-bias region.

What is the relationship between collector current and forward bias?

The next plot clarifies the relationship between collector current and forward bias of the BC junction. V OUT, which is the same as the collector voltage, begins at 5 V and decreases as increasing collector current causes a progressively larger voltage drop across R C.
