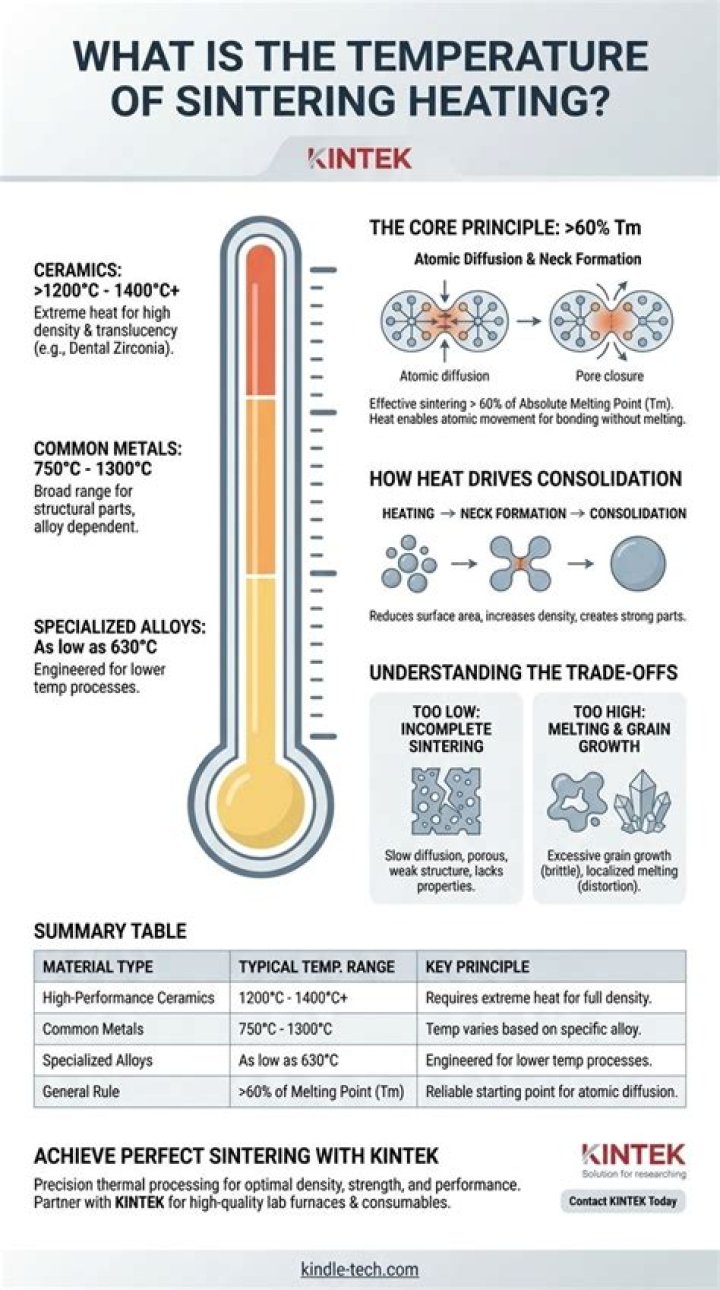

What is the temperature of sintering?

The sintering temperature of laser ceramics compacts is usually about 200–300°c below the melting point of the corresponding composition. The choice of sintering temperature is determined by the growth of ceramics grains because there is a temperature point where the rate of grain growth increases sharply.

What is zirconia sintering?

The heat for sintering furnace is transmitted to the material’s surface and reaches its core by thermal conduction to achieve a mature sintered zirconia. The sintering process comprises a heating, a sintering, and a cooling phase (17).

How long does it take to sinter zirconia?

Approx. 5 minutes for intraoral scanning, 5 minutes for design, 15 minutes for milling, 30 minutes for sintering (in a case involving a single full crown after dry milling), and 20 minutes for polishing or 10 minutes for glaze baking.

Why does sintering need to occur at an elevated temperature?

High sintering temperatures are generally needed to process refractory metals due to their high melting temperatures, but specific conditions depend on the particular alloy, particle size and impurities. The tendency of refractory metals to oxidize requires reducing atmospheres or vacuum for sintering.

How do you reduce sintering temperature?

observed that the sintering temperature of PZT could be reduced by 350°C, to a final sintering temperature of 880ºC, by the addition of 1 wt% LiBiO2 and 0.6 wt% CuO4.

What is high temperature sintering?

In general, high temperature sintering is considered to be from 1175°C (2150°F) to 1425°C (2600°F)[1]. These microstructural enhancements are the result of increased sintering activity at higher temperatures and lead to improved static and dynamic properties.

What is sintering in dentistry?

Dental sintering furnaces are used to process dental zirconia after it has been milled into a crown, bridge, framework or other restoration. The sintering process, which can involve pressure as well as heat, reduces the porosity and increases the density of ceramic materials such as zirconia.

How much does zirconia shrink after sintering?

5, the average range of the linear sintering shrinkage was 18.6 – 23.2%.

What happens in sintering?

Sintering or frittage is the process of compacting and forming a solid mass of material by heat or pressure without melting it to the point of liquefaction. The atoms in the materials diffuse across the boundaries of the particles, fusing the particles together and creating one solid piece.
