What is the velocity of waves in the solid Earth?

The precise speed varies according to the region of the Earth’s interior, from less than 6 km/s in the Earth’s crust to 13.5 km/s in the lower mantle, and 11 km/s through the inner core.

What is compressional wave velocity?

Compressional wave velocity is a measure of the velocity with which sound waves pass through soil and rock strata. It varies with porosity, lithology, degree of fracturing and bulk density of the earth material.

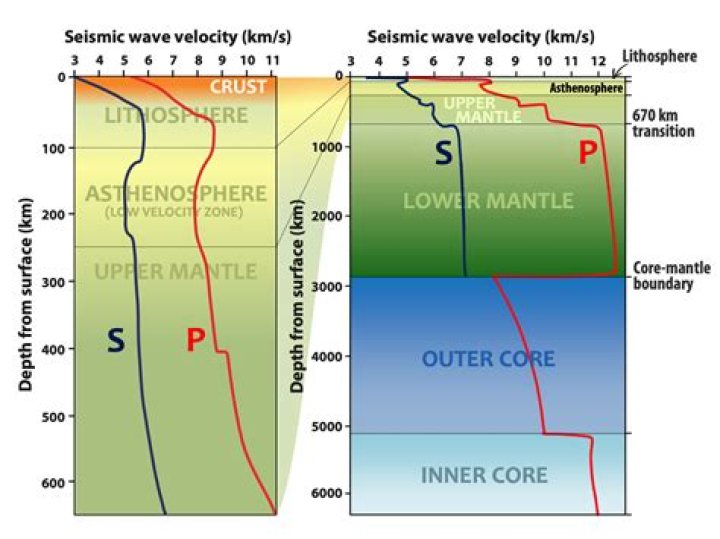

How does the velocity of seismic waves change with increasing depth in the lower mantle?

Seismic velocities tend to gradually increase with depth in the mantle due to the increasing pressure, and therefore density, with depth. However, seismic waves recorded at distances corresponding to depths of around 100 km to 250 km arrive later than expected indicating a zone of low seismic wave velocity.

What is average velocity of P and S wave respectively with depth in the Earth in the crust upper mantle lower mantle outer core and inner core?

The P–wave velocity increases smoothly beneath 700 km through the lower mantle to ∼ 13.6 km/s at the core–mantle boundary. Just above this boundary there appears to be a layer in which the velocity flattens out or may even decrease slightly.

What is the velocity of a surface wave?

waves have a typical group velocity of about 3.5 km/s and can be large-amplitude arrivals on all three components of motion (vertical, radial, and transverse) out to 1000 km.

What rock makes up 95 of Earth’s crust?

igneous rocks
The silicates make up about 95 percent of Earth’s crust and upper mantle, occurring as the major constituents of most igneous rocks and in appreciable quantities in sedimentary and metamorphic varieties as well. They also are important constituents of lunar samples, meteorites, and most asteroids.

What is meant by compressions and Rarefactions?

Compression and Rarefaction. • Compression- a region in a longitudinal (sound) wave where the particles are closest together. • Rarefaction- a region in a longitudinal (sound) wave where the particles are furthest apart.

What wave is also known as compressional wave?

Compressional waves are also known as a longitudinal waves because of the way in which they travel through a medium. Note the direction of travel for each type of wave. In seismology, compressional waves are often referred to as Primary waves (or P waves). These are the first waves to arrive after an earthquake.

How can scientists use a seismograph to determine the density and depth of earth’s layers?

Scientists can tell by observing the seismic waves that are recorded all over the surface of the earth from distant earthquakes. The seismic waves are reflected (bounced off) layers of different density, and they are refracted (bent) when they enter layers of different density.

How seismic waves help us learn about the interior of the Earth?

Knowing how the waves behave as they move through different materials enables us to learn about the layers that make up the Earth. Seismic waves tell us that the Earth’s interior consists of a series of concentric shells, with a thin outer crust, a mantle, a liquid outer core, and a solid inner core.

How are S and P waves used to determine the structure of the earth?

P- waves are faster and they can travel through both solids and liquids. S-waves are slower and cannot travel through liquids. Scientists are able to learn about Earth’s internal structure by measuring the arrival of seismic waves at stations around the world.

What is compressional wave velocity in geology?

Compressional Wave Velocity. Definition – What does Compressional Wave Velocity mean? Compressional wave velocity is a measure of the velocity with which sound waves pass through soil and rock strata. It varies with porosity, lithology, degree of fracturing and bulk density of the earth material.

What is the difference between compressional and shear velocity?

Compressional and shear velocities. Elastic waves are comprised of compressional (or P-waves) and shear (or S-waves). In compressional waves, the particle motion is in the direction of propagation. In shear waves, the particle motion is perpendicular to the direction of propagation. Understanding the velocity of these waves provide valuable

What factors affect the compressional wave velocity in Trenchless construction?

It varies with porosity, lithology, degree of fracturing and bulk density of the earth material. Site investigation for trenchless construction includes both soil and rock depending on geology, and the degree of saturation greatly influences the compressional wave velocity.

What are the average wave velocities in crustal rocks?

Figure 2.15 shows average compressional wave velocities (at 600 MPa and 300 °C) in a variety of crustal rocks. Velocities under 6 km/s are limited to serpentinite, metagraywacke, andesite, and basalt. Many rocks of diverse origins have velocities between 6 and 6.5 km/s, including slates, granites, altered basalts,…
