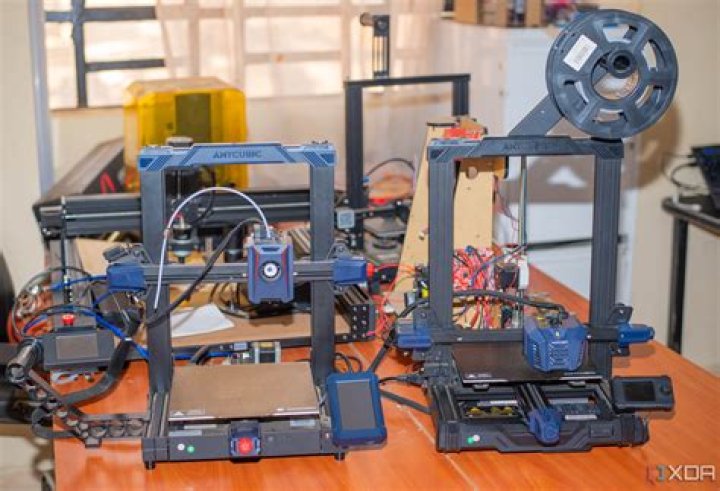

What parts are needed to make a 3D printer?

3D Printer Parts: Complete List of 3D Printing Components

• MotherBoard or Controller Board.
• Frame.
• Print Material.
• Motion Controllers.
• PSU.
• Print Bed.
• Extruder.
• Feeder System.

What is part of printer?

1. Paper support: Supports the paper loaded in the sheet feeder. 2. Sheet feeder: Holds blank paper and automatically feeds the paper during printing.

What are the 4 main parts of a 3D printer?

Here are all the main components of desktop 3D printers worth considering before purchasing one!

• Z Resolution – Layer Thickness. Layer thickness is the minimum thickness of a layer that a printer can lay down in a single pass.
• Build Area.
• Filament Diameter.
• Hot End.
• Nozzle.
• Extruder.
• Cooling Fan.
• Heated Bed.

How much does it cost to build a 3D printer?

Here’s a quick breakdown. DIY printers 3D printer kits start around $200, hobbyist printers range from $500-$1,500. Professional FDM 3D printers start around $2,500, and large-format professional FDM printers start around $4,000.

What are printers made out of?

Solid ink printers They use solid sticks, crayons, pearls or granular ink materials. Common inks are CMYK-colored ink, similar in consistency to candle wax, which are melted and fed into a piezo crystal operated print-head. A Thermal transfer printhead jets the liquid ink on a rotating, oil coated drum.

What is drum on a printer?

What is the drum unit? The drum unit transfers the toner to the paper. The laser printer puts the toner on the roller called “The photosensitive drum” inside the drum unit, and then prints letters and images by fixing toner to the paper by heat and pressure.

Are 3D printed parts strong?

3D printed parts are very strong, especially when using specialized filament like PEEK or Polycarbonate, which is used for bullet-proof glass and riot shields. Infill density, wall thickness and print orientation can be adjusted to increase strength. There’s a lot that goes into the strength of a 3D part.

What are the 6 parts of a 3D printer?

3D Printer Parts

• Extruders. Extruders are a crucial component in 3D printers.
• Print bed. A print bed is the part that the 3d printed object rests on during the printing process.
• Hot Ends. A hot end is where the filament is melted then extruded through a nozzle.
• Filament.
• Layer height.
• Slicer.
• Infill.
• Skirts and Brims.

What 3D printer parts do you need?

The parts you need to obtain depend on the mechanical arrangement you want for your DIY 3D printer, so make sure you decide on one before you go shopping. Of the three options mentioned above, the Cartesian XZ Head, which has a straightforward structure, is the most recommended for those who are building a 3D printer for the first time.

What is a 3D printer controller board?

The controller board (also called the motherboard or mainboard) is the 3D printer’s brain. It tells the motion components how to move and processes input from the sensors, among other functions.

Should you buy a metal frame 3D printer?

With limited budget, you can still own a metal frame 3D printer. When talking about frames, the open and closed frame designs also make a difference. A closed frame offers better results by maintaining consistent temperature around the print space. There are few printers that also offer semi-enclosed frames.

What is a 3D printer Print Bed?

The print bed is the platform where the 3D model is formed. Its movement depends on the mechanical arrangement of the 3D printer. In a Cartesian XZ Head setup, it moves along the Y-axis while in a Cartesian XY Head setup, it moves along the Z-axis. In a delta setup, the print bed is stationary at the base of the machine.
