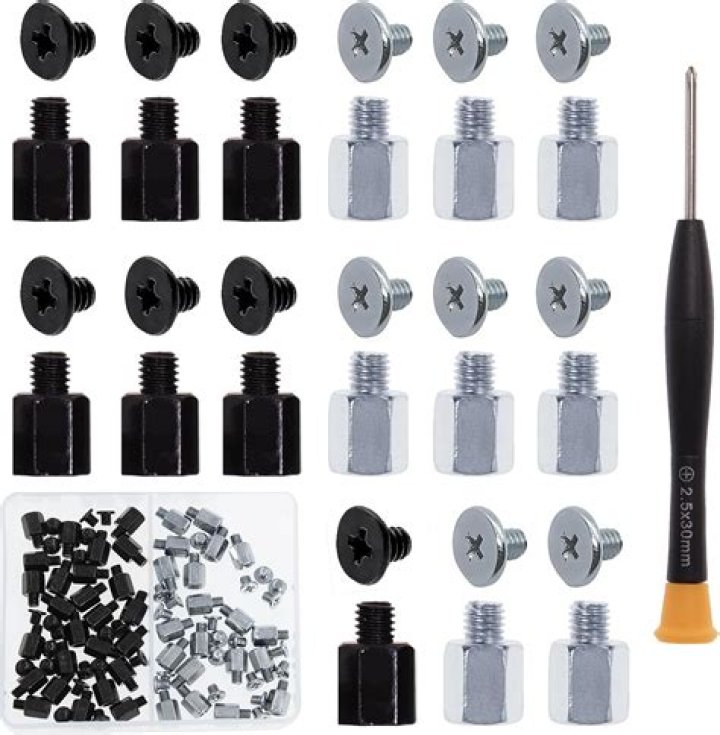

What size screws go in motherboard standoffs?

Standard motherboard screws are #6–32 x 3/16″ (sometimes 1/4″). M3 screws are also used, although less often than #6–32 screws. Every Motherboard (MOBO) will come with a set of screws and posts (the little hexagonal screws that hold the MOBO off the side of the case for airflow.)

What is the standard standoff size?

According to the ATX 2.1 standard: The standoff provided has to be a minimum of 6.5mm and the external cross section has to fit within a 10mm x 10mm area around the standoff hole. The mounting screws must (obviously) match the standoff screw wells (usually 6/32 or M3 thread size).

Are all motherboard standoffs the same size?

From experience over many years, they are all standard threads and size, but not length, that varies by case manufacturer. Generally a computer case will come with 9 standoffs to meet ATX standards, unless the case is smaller. The majority of ATX motherboards will use 6, smaller boards even less.

Are motherboard standoff screws Universal?

All motherboard screws and standoffs are universal, so you can use them as you like.

What are standoff screws?

A standoff is a double-ended threaded fastener used to set a distance between two parts. A male end of a standoff resembles a shoulder bolt, however, instead of a head, a standoff has another threaded fastener at the other end.

How is standoff measured?

To measure a Standoff or Spacer, measure the outside diameter of the body, the length of the body and the thread size. Determine if the standoff is a female-female, male-female or male-male. A typical Standoff might measure as follows: 1/4 hex X 1/2 long X 8-32 thread male-female aluminum standoff.

What size are m 2 screws?

The correct screw size is 2.0 x 3mm (CM2x3-3.3). If you are in the USA, then you can usually find the screws at Ace Hardware stores.

Do standoff screws come with the case?

No! They do not. It’s a common misconception, as standoffs are included with (or built onto) the computer case itself. Motherboards are standardized within form factors, but cases can vary significantly in shape, size, and depth, so screws and standoffs are included to guarantee compatibility.

Are standoffs pre installed?

Some cases come with them pre-installed, other cases just have the threads to install them. The number and position is dependent on the motherboard. There could even be standoffs pre-installed that are NOT needed and have to be removed.

Whats a standoff screw?

A standoff is a double-ended threaded fastener used to set a distance between two parts. A standoff is a threaded fastener used to hold two parts a set distance apart. At each end a standoff may have a threaded shaft (male) or a threaded hole (female).

What are standoffs and how are they used?

A standoff is a threaded separator of defined length used to raise one part in an assembly above another . They are usually round or hex (for wrench tightening), often made of aluminum, brass, or nylon, and come in male-female or female-female forms. In electronics they are frequently used to raise a printed-circuit board above a surface.

Which Screws do I use to install the motherboard?

Standard motherboard screws are #6-32 x 3/16″ (sometimes 1/4 “). M3 screws are also used, although less often than #6-32 screws. You did perform a power-up test on the motherboard before embarking on installing, didn’t you? The usual type of screw will be an M3 of about 5mm in length.

Are motherboard standoffs necessary?

When setting up a PC, one of the several things that the majority of the newbie can slip up is the value of motherboard standoffs. Essentially, these are not a mere alternative for the PC, rather they are a necessity . They play a significant part in guaranteeing that the motherboard will not be in contact with the case.

What are motherboard standoffs?

Motherboard Standoffs Motherboard standoffs serve the very important purpose of keeping the motherboard from making too much contact with the computer case. They are installed underneath the motherboard in a way that prevents the underside of the board from touching the metal interior of the case.
