What type of screw tip is best for self-tapping screws?
Self-tapping screws come with a sharp, piercing tip or a flat, blunt tip. The sharp-tipped screws are designed for drilling their own hole into softer materials such as wood and plastic so they don’t need a pilot hole. The advantage of the flat-tipped screw is that it won’t get stuck in the material and break off.
How do you install self drilling screws?
Position the screw straight in line with the hole and turn it in, one or two turns, by hand. This allows the screw to be left in the hole as you pick up your screwdriver or drill machine. Using firm short movements, screw the self-tapping screw in place using a Phillips or flat head screwdriver or drill bit.
What drill bit do you use for screws?
Drill Bit Sizes For Pre-Drilling For Screws Most Commonly Used Sizes In Bold
| Screw Size | Pilot hole size for hardwoods* | Pilot hole size for softwood** |
|---|---|---|
| #4 | 1/16″ | 3/64″ |
| #5 | 5/64″ | 1/16″ |
| #6 | 3/32″ | 5/64″ |
| #7 | 3/32″ | 5/64″ |
What does a self drilling screw look like?
Self-drilling screws are easy to distinguish if you look at their point, which curves gently at the end and is shaped like a twist drill. They’re often called Tek Screws, after the brand name that popularized them.

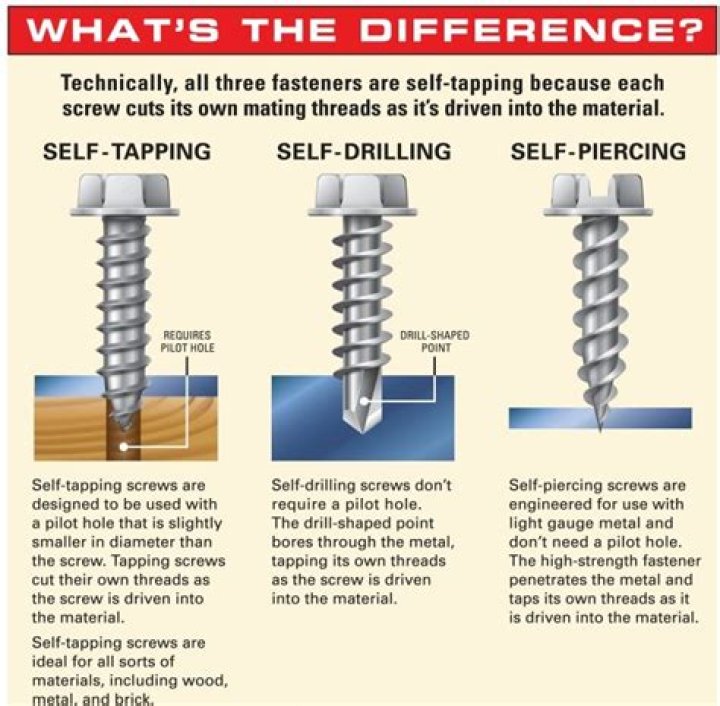

What’s the difference between self tapping and self drilling screws?
To summarise: Self-Tapping – a screw for securing thinner sheet metals and other substrates that cuts its own thread, but usually requires a predrilled or pre-punched hole. Self-Drilling – a screw that can, well, self-drill through various gauges of metal materials without predrilling.
What do self tapping screws look like?
Self-Tapping Screws Their tips come in different shapes: pointed (like a pencil), blunt, or flat, and they are described as thread-forming, thread-cutting, or thread rolling. The screw will become loose and not thread properly and securely if the hole’s too big.
How do you tell what size a drill bit is?
Typical drill bits have markings somewhere on the shank above the threads. It’s small, but it usually has the drill-bit diameter stamped into the metal; the number is written in fractions. For example, the markings may read: 1/4-inch, 3/6-inch or 25/32.
How do I choose a drill bit for an anchor?
“You want a drill bit that’s big enough to drill a hole in the wall, and easy to push the anchor in with your thumb,” Donahue explains. “You don’t want to have to force it in there. The drill bit should be the same size as the body of the anchor you’re using.”
How thick of metal can self-tapping screws go through?
Self drillers, sometimes called drill and tap screws or TEK screws give you the luxury of fastening with out drilling and tapping. Our self drillers for thick steel take it up a notch. With the ability to drill into steel up to 1/2″ in under 40 seconds, you will find many uses in install and service work.
What kind of screwdriver bit do you use for slotted screws?
This type of screwdriver bit works with slotted screws that have a cut through the top of the head. When choosing what size flat blade screwdriver to use, always make sure the tip is the width of the fastener and the bit fits snugly.
How do I choose the best cordless drill for driving screws?
When choosing a drill for driving screws, choose a cordless drill that has high and low or variable speeds and an adjustable clutch. An impact driver is the best choice for longer screws, since it combines increased torque with a hammering action to get the job done easier.
Why choose a specific screw bit type?
In our opinion, the biggest reason for going with a particular screw bit type is getting a good grip on the fastener. The tip of the screwdriver or driver bit should always fit snugly into the fastener so as not to slip around when the fastener is turned (at either low or high speeds depending upon the application).
How do you use an impact driver screwdriver?
The tip of the screwdriver or driver bit should always fit snugly into the fastener so as not to slip around when the fastener is turned (at either low or high speeds depending upon the application). Impact drivers are particularly adept at maintaining the bit’s connection to the fastener when used properly.
