Where are putty pads required?
Putty pads, as mentioned above, are designed to be applied to the external surfaces of metallic and nonmetallic boxes. They are applied to the back surface of the box, as well as the three sides that are away from the stud. Openings for steel electrical boxes not exceeding 16 sq.
What are electrical putty pads?

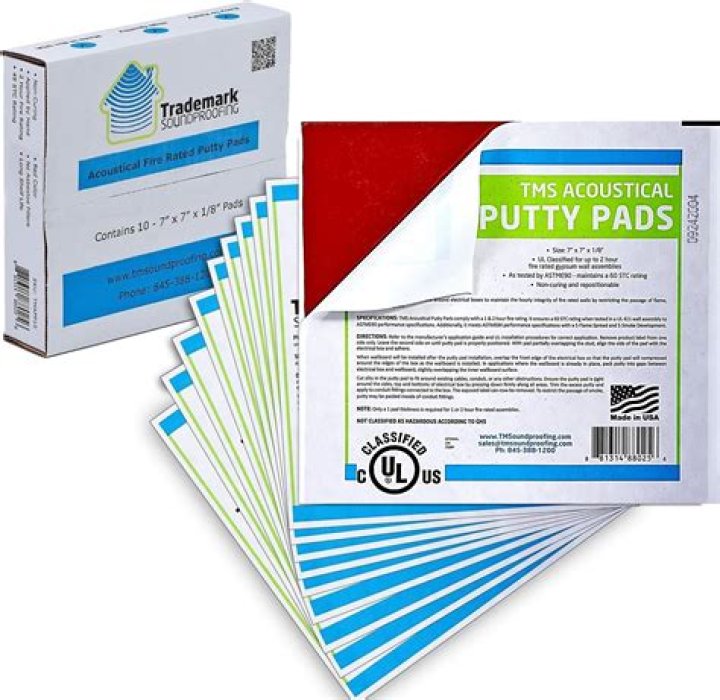

WHAT ARE PUTTY PADS? Putty Pads are made from intumescent putty which is primarily used a firestopping product. Putty Pads are available as a 7″ x 7″ poly release faced pad for protection of recessed electrical boxes and as a through-penetration sealant. The pad is sized to fit a common 1-1/2″ deep 4S electrical box.
Do Putty Pads work?
The Results. The putty pad worked much better than I expected. The pad sealed the junction box and blocked the music on the other side of the wall. If you’re putting in a new wall, putty pads are a relatively inexpensive and effective way to reduce sound transmission.
How does fire putty work?
A Firestop Acoustical Putty Pad provides acoustical sealant for wall penetrations in the form of a release lined pad that is easy to apply to electrical boxes or other penetrates. The pad is conveniently sized to fit standard single or double gang boxes with no cutting or piercing required.
Can electrical boxes be back to back?
Watch out: do not install a pair of interior and exterior electrical receptacle boxes in the same stud bay back-to back. The result of such an installation can violate the fire resistance of the wall. Instead, as you will read below, the boxes need to be offset from one another.
Do electrical boxes have a fire rating?
The metallic outlet or switch boxes must be securely fastened to the studs. Listed metallic outlet boxes with metallic or nonmetallic cover plates may be used in fire-rated floor/ ceiling and roof/ceiling assemblies with ratings not exceeding two hours. Such assemblies must be equipped with gypsum wallboard ceilings.
How do you soundproof an electrical outlet?
There are 5 ways to soundproof electrical outlets and they are:
- Use acoustic putty.
- Fill the cavity around the outlet with mineral wool.
- Decouple the electrical outlet.
- Replace outlet with a soundproof outlet box.
- Fill the cavity around the outlet with acoustic caulk.
How do you use Quietputty?
Use QuietPutty on electrical outlet boxes, rocker switches, HVAC ducts, water hookups, cable systems or any other penetration that require an acoustic seal. QuietPutty is clean, easy to use and requires no tools to apply….QuietPutty.
| Unit Size | 20 pads/box |
|---|---|
| Thickness | 0.1875” (4.76 mm) |
| Color | Red |
| Weight | 10.2 oz (290 g) |
Can you screw an electrical box to a stud?
Pull the nails out of the box and screw the box to the stud with sheet rock screws as shown. Be careful not to crack the box. Plastic boxes work better with screw mounting.
When are putty pads used with electrical boxes?
Putty pads are used in conjunction with metallic and nonmetallic electrical boxes under the following conditions: 1. Where the aggregate area of the boxes will exceed 100 sq. in. per 100 sq. ft. of wall.
Can Hilti firestop putty pads be installed on metal boxes?
In accordance with Hilti’s CLIV approval, CP 617 or CFS-P PA Firestop Putty Pads can be installed on metallic boxes up to 14” x 4” x 2-1/2” deep. Hilti Firestop Box Insert can be installed on steel boxes up to 4-11/16” x 4-11/16” and 4-1/2” x 8-1/2”.
Why choose STI putty pads?
Putty pads also reduce cost by allowing the designer greater freedom in designing mirror image living units along rated walls. STI utilizes putty pads in some throughpenetration firestop designs. The shape of the pad as well as some of its unique properties work perfectly in solving a number of unique problems.
What are sound deadening putty pads used for?
Over time, sound deadening has actually become a secondary use for putty pads. The pads are now used primarily to overcome certain restrictions on the number and placement of electrical boxes in rated gypsum wallboard assemblies. How are they used?
