Where is the fuse panel on a Freightliner M2?

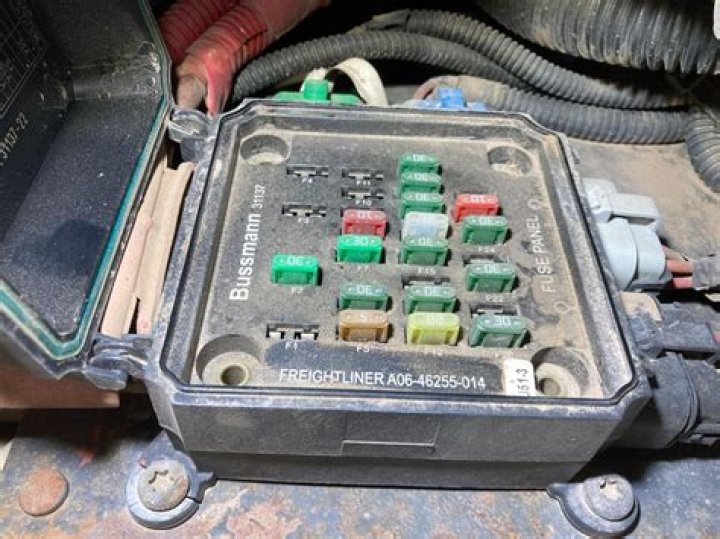

Factory-Wired M2 Fuse fuse panel under the hood on the driver’s side. F6 is fused.
Where is located the fuse box?
The interior fuse box is underneath the dashboard on the driver’s side. There are two under-hood fuse boxes in the engine compartment. The main fuse box is located on the passenger’s side near the battery.
Is the Freightliner M2 a Class 8 truck?
Named for its 112-inch BBC length, the M2 112 is a Class 8 truck available in GVWRs up to 80,000 lbs. Although available as a straight truck like the M2 106, it is also available as a tractor.
What does a bulkhead module do?
The Bulkhead Module (BHM) is the primary module of the vehicle electrical system, and controls the operation of the other multiplex modules in the system and a variety of other vehicle components either directly or indirectly.
Where is the starter fuse located on a Freightliner Cascadia?
The first fuse is a 300 Amp Battery Terminal fuse mounted to the +12 side of the chassis battery. The next set of fuses are located in the last engine compartment on the driver’s side in a Chassis Battery Distribution Panel under a large red rubber cover.
How do I get to my fuse box?
The interior fuse boxes are located under the dashboard on the driver’s and passenger’s side. To open the secondary fuse box lid, push the tab in the direction shown in the illustration. The primary under-hood fuse box is in the engine compartment on the driver’s side. To open it, push the tabs as shown.
What is the size of the wiring diagram for Freightliner M2 fuse box?
Freightliner. Wiring Diagram in Freightliner M2 Fuse Box Location, image size 975 X 731 px, and to view image details please click the image. Published by means of admin with September, 1 2013. If you like this article you can bookmark or share it to your social media account, I thank you quite since you have actually visited this internet site.
Where is the fuse box on a trailer?
The trailer fuse box and the taillight fuse box, on vehicles so equipped, are mounted on a bracket with the chassis module on the left-hand frame rail aft of the cab, or on a crossmember at the end of the frame rail. These may be referred to as the chassis fuse box or chassis PDM.
Where is the fuse box located on a 2004 Chevy Silverado?
The main fuse box, also known as the power distribution module, or PDM, is located under the hood onthe left front fender just forward of the bulkhead module. The fuses in the main fuse box are mini blade-type fuses.
What kind of fuses are in the fuse box?
The fuses in the main fuse box are mini blade-type fuses. Battery power fuses, located near the batteries, are bolt-in megafuses. Because the electrical system is multiplexed, no relays are needed. The multiplexing module performs the functions normally provided by relays. 1. Bulkhead Module 2. Main Fuse Box
