Where is transfer function Simulink?

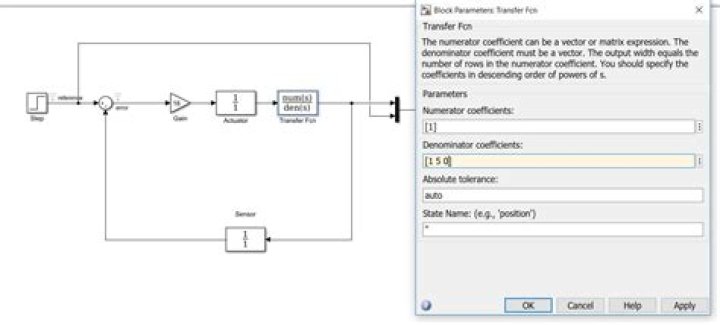

Click on the Continuous listing in the main Simulink window. First, from this library, drag a PID Controller block into the model window and place it to the right of the Gain block. From the same library, drag a Transfer Function block into the model window and place it to the right of the PID Controller block.
What is Simulink in MATLAB with example?
Simulink examples include scripts and model files that guide you through modeling and simulating various dynamic systems. Using a Simulink Project to manage the files within your design. Regulating the speed of an electric motor. Modeling a bouncing ball using Simulink.
Who Uses Simulink?
Top Industries that use Simulink Looking at Simulink customers by industry, we find that Higher Education (13%), Computer Software (8%), Automotive (7%), Education Management (7%), Computer Hardware (6%) and Aviation & Aerospace (5%) are the largest segments.
Is transfer function of a system unique?
transfer function is straightforward because the transfer function form is unique. Converting from transfer function to state space is more involved, largely because there are many state space forms to describe a system. State Space to Transfer Function
What is an open loop transfer function?
The open-loop transfer function is equal to the product of all transfer function blocks in the forward path in the block diagram. The closed-loop transfer function is obtained by dividing the open-loop transfer function by the sum of one (1) and the product of all transfer function blocks throughout the feedback loop.
What is transfer function in circuit?
Transfer Function of Series RL Circuit. A Transfer function is used to analysis RL circuit. It is defined as the ratio of the output of a system to the input of a system, in the Laplace domain. Consider a RL circuit in which resistor and inductor are connected in series with each other.
What is a transfer function model?
In continuous-time, a transfer function model has the form: Where, Y(s), U(s) and E(s) represent the Laplace transforms of the output, input and noise, respectively. num(s) and den(s) represent the numerator and denominator polynomials that define the relationship between the input and the output.
