Which channels are best for 5GHz WIFI?
All of the 5 GHz channels offered support at least 20MHz channel width without overlap. When using 5 GHz, it is recommended to use at least 40 MHz channel width, as some client devices may not prefer 5 GHz unless it offers a greater channel width than 2.4 GHz.
Which 802.11 is 5GHz?
Different Wi-Fi Protocols and Data Rates
| Protocol | Frequency | Maximum data rate (theoretical) |
|---|---|---|
| 802.11ac wave1 | 5 GHz | 866.7 Mbps2 |
| 802.11n | 2.4 or 5 GHz | 450 Mbps3 |
| 802.11g | 2.4 GHz | 54 Mbps |
| 802.11a | 5 GHz | 54 Mbps |

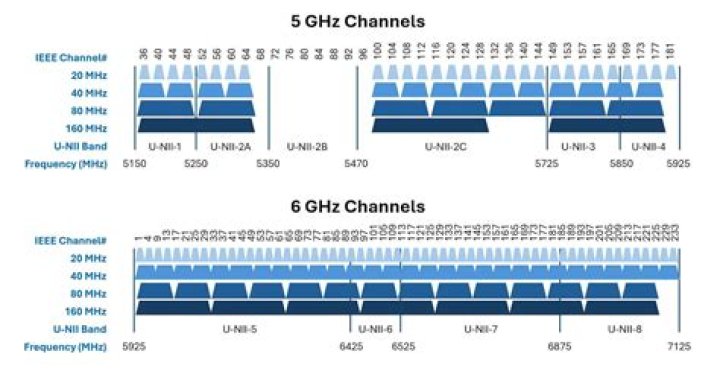

How many channels does 5GHz WIFI have?
23
The great thing about 5GHz (802.11n, 802.11ac, and Wi-Fi 6) is that because there’s much more free space at the higher frequencies, it offers 23 non-overlapping 20MHz channels.
How can I boost my 5GHz Wi-Fi signal?
6 ways to extend your Wi-Fi range
- Move your existing router to a better position.
- Buy a new, better router.
- Buy a mesh Wi-Fi kit.
- Buy a Wi-Fi extender / booster.
- Buy a powerline networking adapter set with Wi-Fi.
- Switch to 2.4GHz from 5GHz.
How do I connect 802.11 N to 5 GHz?
2. Change network adapter mode
- Press the Windows logo key and R key at the same time.
- In the Run box, type devmgmt.
- Go to Network adapters and right-click on the network adapter.
- Click Advanced > Wireless Mode > Auto > OK.
- In the Advanced tab, move to Preferred Band, set 5G first, then click OK.
Which 802.11 extensions operate mainly at 5 GHz?
802.11b/g operate in the 2.4GHz band, while 802.11a operates in the 5GHz band.
Do 5GHz channels overlap?
The 5GHz channels don’t overlap, BUT if you use channel bonding for 802.11n or 802.11ac to bond more channels to a 40 or 80 MHz channel you’d need to make sure you don’t overlap.
Does 802.11 a support 5GHz?
802.11a is also one of the older standards. It supports much higher speeds, up to 54 Mbps, but over the 5GHz band.
Why isn’t the 5Ghz band available in the US?
The whole 5–6GHz is not available since there are some forbidden channels and some channels have special restrictions. Originally only the four lowest channels were available in the U.S. where they are called UNII-I. Later more channels have been made available, but they have several restriction for their use in the U.S.
What is the maximum bandwidth allowed on a 20MHz channel?
The maximums are calculated for 20MHz channels. The maximum should be halved (-3dBm) for 40MHz, quartered (-6dBm) for 80MHz and only one eighth (-9dBm) for 160MHz. Usually this doesn’t matter for access point use, since the maximums shouldn’t be used anyways.
What is the frequency range for Public Safety WLAN?
4.9 GHz (802.11j) public safety WLAN. 50 MHz of spectrum from 4940 MHz to 4990 MHz (WLAN channels 20–26) are in use by public safety entities in the United States. Within this spectrum space, there are two non-overlapping channels allocated, both with a width of 20 MHz. The most commonly used channels are 22 and 26.
What is the primary 20 MHz channel?
The WLAN administrator must designate which 20 MHz segment within a 40, 80, or 160 MHz wide channel is the primary 20 MHz channel. This channel forms the core frequency segment that the BSS (basic service set) or AP radio operates on.
