Why are microcontrollers used with stepper motors?
Stepper Motor Control using 8051 Microcontroller Principle The main principle of these circuits is to rotate the stepper motor step wise at a particular step angle. The ULN2003 IC and the L293D Motor Driver are used to drive the stepper motor as the controller cannot provide current required by the motor.
How is stepper motor interface with microcontroller?
Interfacing Stepper Motor with 8051 Microcontroller Weare using Port P0 of 8051 for connecting the stepper motor. The Unipolar stepper motor works in three modes. Wave Drive Mode − In this mode, one coil is energized at a time. So all four coils are energized one after another.
What devices use stepper motors?
Stepper motors are diverse in their uses, but some of the most common include:
- 3D printing equipment.
- Textile machines.
- Printing presses.
- Gaming machines.
- Medical imaging machinery.
- Small robotics.
- CNC milling machines.
- Welding equipment.
How do you interface a stepper motor?
Interfacing Stepper Motor with 8051 Microcontroller And rest two wires should be connected to a proper 12v supply (depending on the stepper motor). Here we have used the unipolar stepper motor. We have connected four ends of the coils to the first four pins of port 2 of 8051 through the ULN2003A.

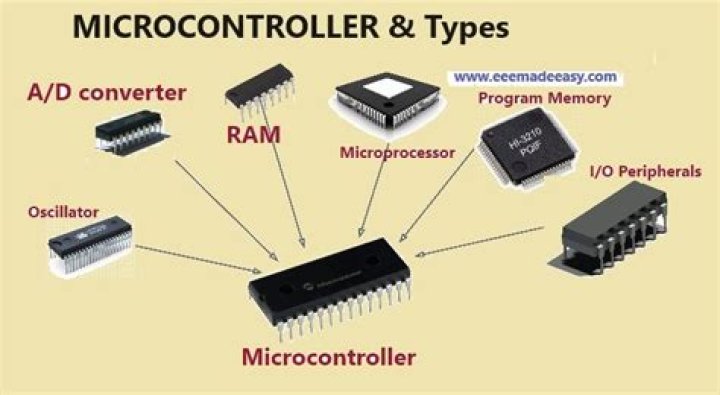

What is microcontroller and its types?
A microcontroller (μC or uC) is a solitary chip microcomputer fabricated from VLSI fabrication. A micro controller is also known as embedded controller. Today various types of microcontrollers are available in market with different word lengths such as 4bit, 8bit, 64bit and 128bit microcontrollers.
How are stepper motors used?
The stepper motor is used for precise positioning with a motor, such as hard disk drives, robotics, antennas, telescopes, and some toys. Stepper motors cannot run at high speeds, but have a high holding torque.
How is the stepper motor used in robotics?
A stepper motor is suitable for robotic applications because its movement comprises of discrete steps. It moves by a discrete angle called the step angle in each step. A versatile drive system will allow accurate control of the movement of a stepper motor so that it can be used in robotic applications.
How can we control the speed of a stepper motor using 8051 microcontroller?
The stepper motor controller is designed using 8051 microcontrollers and switching circuit for controlling the speed of the stepper motor. The control switch circuit can be designed by using transistor switches or by using stepper motor controller IC such as ULN2003 in place of the transistors.
What are 3 basic applications of a microcontroller?
Microcontroller Applications:
- Light sensing & controlling devices.
- Temperature sensing and controlling devices.
- Fire detection & safety devices.
- Industrial instrumentation devices.
- Process control devices.
How to control a stepper motor?
Schematic
What is stepper motor and how it works?
Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called “phases”. By energizing each phase in sequence, the motor will rotate, one step at a time.
What is step motor?
A stepper motor or step motor or stepping motor is a brushless DC electric motor that divides a full rotation into a number of equal steps.
What is a step controller?
A step controller is an advanced electronic device that controls conditions in a greenhouse better than a mechanical thermostat and can save money in the long run.
